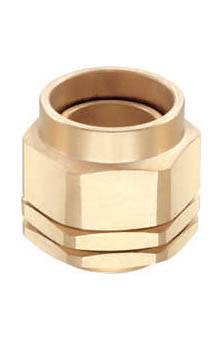

BW Type

Material Brass
Range 20 mm to 75 mm.
Feature / Application Single armour clamping. No loose parts and easy to install. Most suitable for SWA, plastic or rubber sheathed cables. Used in dry indoor conditions
Seal Rating IP 54
Finish Brass Finish, Nickel Finish, Chrome Finish or as specified
BW-Type
Download PDF

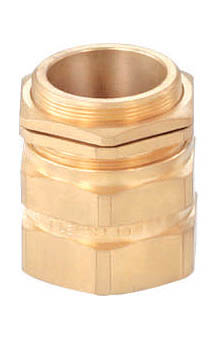

CW Type

Material Brass
Range 20 mm to 75 mm.
Feature / Application Provides cable retention and seal onto the cables outer sheath. Outdoor or Indoor use. For use with non-armoured elastomer and plastic insulated cables. May be used on cables incorporating inner and outer cable sheaths.
Seal Rating IP 66
Finish Brass Finish, Nickel Finish, Chrome Finish or as specified
CW-Type
Download PDF

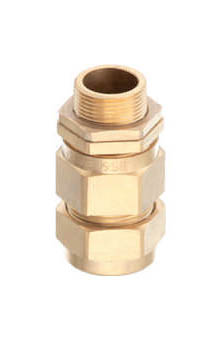

E1W Type

Material Brass
Range 20 mm to 75 mm.
Feature / Application Separate armour lock rings and provides a seal on the cables inner sheath. Suitable for SWA or rubber sheathed cables. Outer seal grips bedding layer of cable for use in most climatic conditions. Weather proof and water proof.
Seal Rating Inner and outer seal IP66
Finish Brass Finish, Nickel Finish, Chrome Finish or as specified
E1W-Type
Download PDF

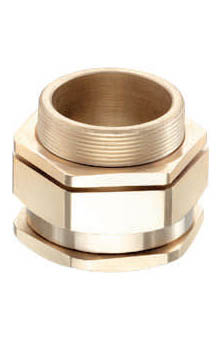

A1/A2 Type

Material Brass
Range 16 mm to 75 mm.
Feature / Application Provides a cable retention seal onto the cables outer sheath. Suitable for unarmoured or rubber sheathed cables Used for indoor as well as outdoor applications.
Seal Rating IP 66
Finish Brass Finish, Nickel Finish, Chrome Finish or as specified
A1-A2-Type
Download PDF

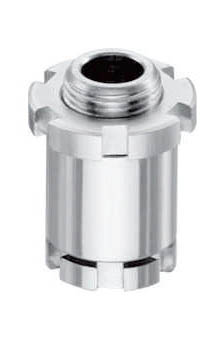

Marine Type

Material Brass
Range 10 mm to 70 mm.
Feature / Application Used for various marine applications
Finish Brass Finish, Nickel Finish, Chrome Finish or as specified
Marine Type
Download PDF
